Large Rennie Grapnel

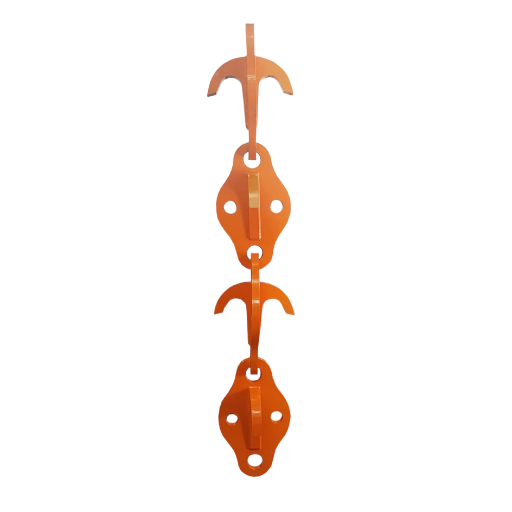

The Rennie Grapnel is usually used in conjuntion with the Gifford. The Rennie Grapnel is built up of flat links, the fluke passes through the body and is then welded onto it. The links are joined together in sets of four in the form of a chain, successive links and flukes being at right angles to each other. Flukes can be detached for renewal when required.

It is often used with two Gifford grapnels to provide weight and hold the grapnels down. The Rennie Grapnel can be used on any type of seabed but originally designed for rocky environments.

Key features

  • Manufactured from high strength structural steel
  • Painted using marine grade paint
  • Proof Loaded to 150% of WLL
  • Optional Hardox flukes


  • PLGR (Pre Lay Grapnel Run)
  • Originally designed for rocky environments
  • Recovering or clearing cables up to 90mm diameter
  • Maintenance of cable systems

Dimensional data

Part Number Description A B C D WLL Proof Load
0001-1159 Rennie Large 2358mm 660mm 395mm 438mm 13t 26t

Spares and Accessories

Part Number Description
0050-1095 26mm Hammer Lok Coupling
