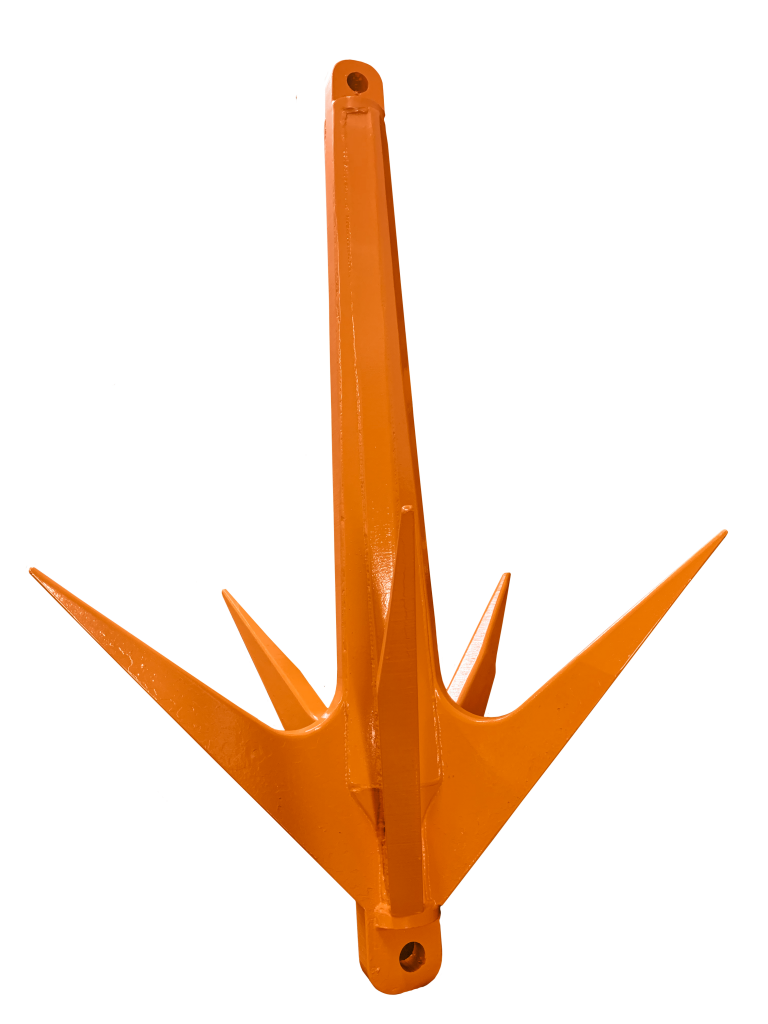

Sandpoint Grapnel

Description

The Sandpoint Grapnel is manufactured from high strength structured steel. The sizes normally used are 115kgs, 180kgs and 250kgs and this will depend on penetration requirements.

They are ideal for use on sandy or easily disturbed seabeds where little resistance will be experienced, and are particularly good where the cable has become self-buried to a small degree. They can also be added at the rear of the grapnel train for extra weight and penetration.

Key features

  • Manufactured from high strength structural steel
  • Integrated single piece prongs for increased strength
  • Flux core welded for increased strength integrated tow points
  • Integrated tow points
  • Painted in marine friendly RAL2000 paint

Applications

  • PLGR (Pre Lay Grapnel Run)
  • Designed for sandy seabed environments
  • Recovering or clearing self buried cable
  • Maintenance of cable systems
  • Used in conjunction with Rennie and Gifford

Dimensional data

Part Number Description A B C D WLL Proof Load
0001-1183 115kg 950mm 385mm 330mm 782mm 7.5t 15t
0001-1184 180kg 1220mm 510mm 470mm 1032mm 7.5t 15t
0001-1166 250kg 1550mm 560mm 550mm 1132mm 7.5t 15t

Spares and Accessories

Part Number Description
0050-0692 12t Shackle
