Small Telemetry Compressive Load Cell TC-3.0-SM

Description

DLM’s Telemetry Compressive Load Cells can be used independently or in combination as part of weighing platforms.

They range from 10t to 50t and are manufactured using high-grade stainless steel, making these load cells particularly suited to rugged environments and the hire industry, amongst others. Other sized compressives can be designed upon request. Some applications include: tank weighing, silo weighing, container weighing and certification.

Commodity Code: 90319000

Key features

  • 2.4GHz licence free frequency
  • Ability to transmit to unlimited handheld displays
  • 800m wireless range
  • Remote power on/off
  • Sleep mode for battery conservation
  • Use the TW-3.0 Handheld to totalise load readings from multiple compressive load cells

Dimensional data

Load Capacity (Tonnes)DescriptionPart NumberAccuracy (%FRO)Proof Load (% Load Capacity)Weight (Kg)Resolution (Kg)
10 No Saddle 0001 – 1368 <±0.5 150 4.5 50
20 No Saddle 0001 – 1369 <±0.5 150 4.5 50
30 No Saddle 0001 – 1370 <±0.5 150 4.5 50
40 No Saddle 0001 – 1465 <±0.5 150 4.5 50
50 No Saddle 0001 – 1371 <±0.5 150 4.5 50

Product specification

Battery: 2 x 1.25V NiCad or NiMH rechargeable
Battery Life: 700 hours continuous (2 years non operational)
Charger: Supplied with USB charger
Operating Temperature: -20°C to +60°C
Frequency: 2.4GHz
Range: Up to 800m range (line of sight)
Loadcell Material Stainless steel
Bridge Resistance: 700Ω
Saddle Options: Dome saddle / Tilting saddle
Operating Temperature range: -10°C to +60°C
Compatible With: TW-3.0-T handheld display / Custom built display / Centre of gravity display
Packaging: Packaged in rugged storm / watertight peli case
Approvals: UKCA, CE, FCC and IC tested and compliant
Country of Origin UK

Related products

Load Monitoring

Telemetry Handheld Display TW-3.0-T

Standard Handheld Display
Find out more

Legacy

Small Compressive Load Cell CCSM-3.0

Compressive load cell
Find out more

Load Monitoring

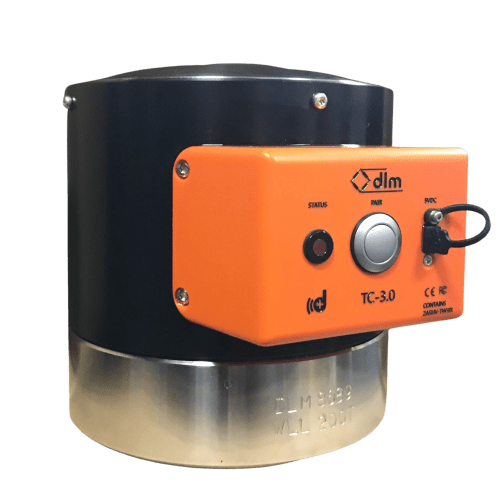

Large Telemetry Compressive Load Cell TC-3.0-LG
