Centre of Gravity Software


The TW-3.0 Centre of Gravity Software from DLM is designed to complement DLM’s
TW-3.0 range of products.

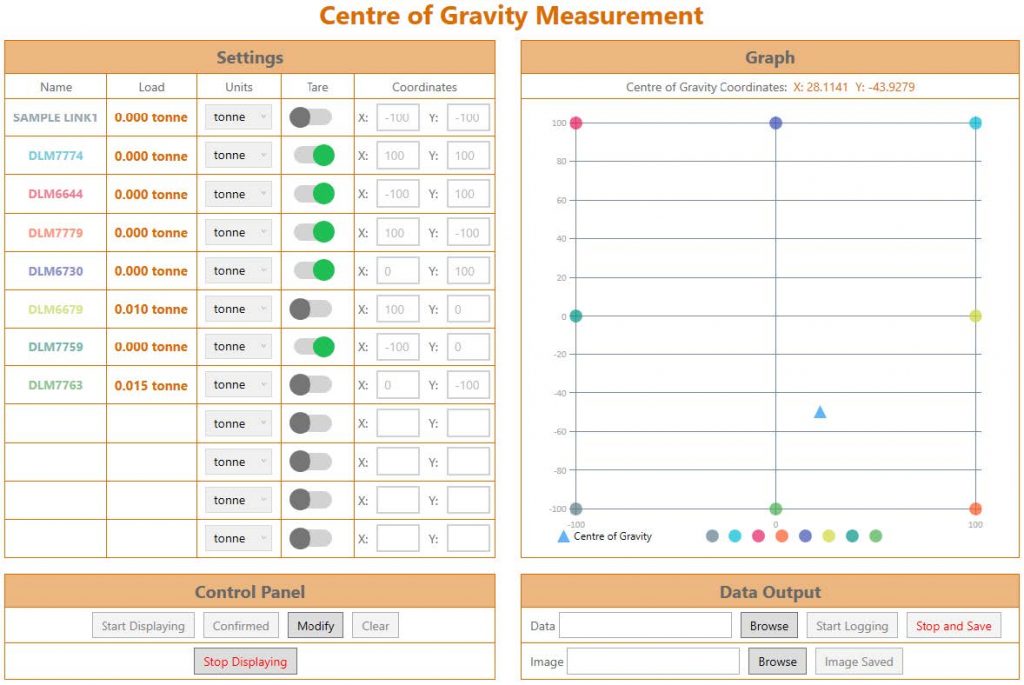

It is used for calculating and visualising the centre of gravity for any objects weighed by TW-3.0 Load Cells.
Up to 12 load points can be monitored and analysed dynamically within one PC display. Additionally, the entire
dataset during the measurement process can be easily logged to a single CSV file for future reference.

Key features

  • Calculate and visualise the centre of gravity dynamically using up to 12 TW-3.0 Load Cells.
  • Log load and CoG position values to a CSV file during the weighing process
  • Save the position of the centre of gravity as an image for future references
  • Switch between 7 different weight units.
  • Switch between tare weight and gross weight.


  • Container centre of gravity measuring.
  • Yacht centre of gravity measuring.

Product specification

Part Number: 0001-1281
Equipment Required: Windows PC, TW-3.0-T Load Cell, TW-3.0-T Handheld, Male USB to Male Micro USB Cable.
Display Units: Tonne, kN, KgF, Kg, Ib, tonne(US), kip.
Minimum System Requirements: Operating System: Windows 7 SP1 or above RAM: 512MB or above File Size: 11MB. CPU: 1GHz or faster processor Software Framework: Microsoft .NET Framework Version 4.7.2 or above
