Telemetry Shackle Load Cell TS-3.0

Description

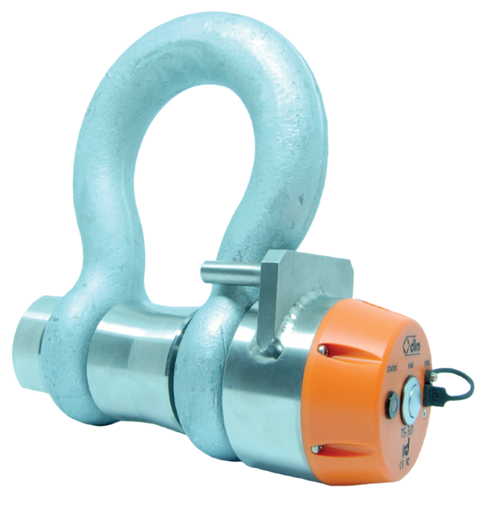

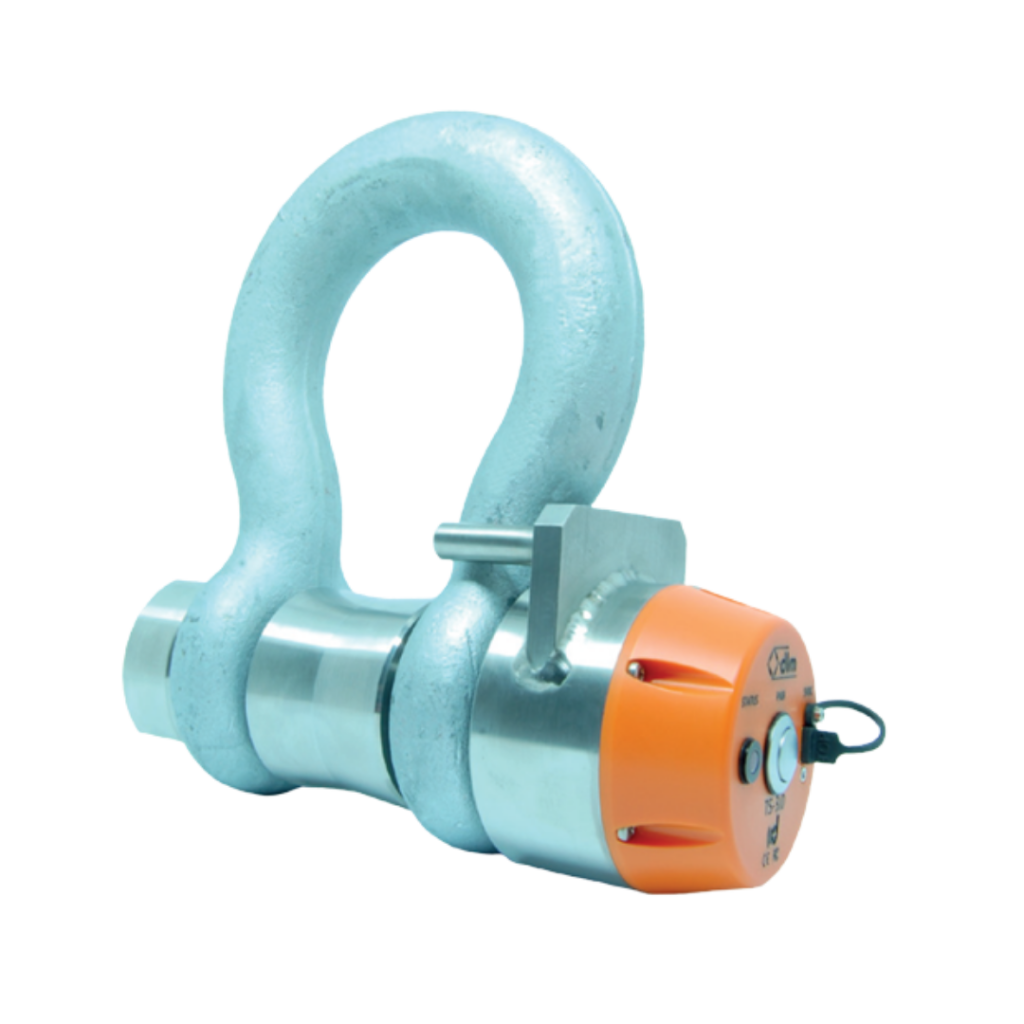

The DLM Telemetry Shackle is a high strength marine grade wireless Load Cell. Manufactured from industry leading Crosby and GN shackles along with a stainless steel load pin, the DLM Telemetry Shackle offers reduction in weighing headroom with the flexibility of 2.4GHz licence free wireless load transmission.

The DLM Telemetry Shackle can be used with one or multiple TW-3.0-T Handheld Displays showing the load.

Key features

  • Rugged design
  • Ability to transmit to multiple hand held displays
  • 2.4GHz license free frequency
  • 800m range (line of sight)
  • Stainless steel construction
  • Low headroom when rigged
  • Supplied with load centering bobbin
  • Remote power on/off feature
  • Sleep mode for battery conservation

Dimensional data

Load Capacity (Tonnes) Part Number Shackle A B C ØD E F G ØH ØI Proof Load Accuracy (%FRO) Resolution (kg)
6.5 0001-1350 G2130 102 53 22 25 72 35 175 75 53 150% <±1 1
12 0001-1351 G2130 146 76 33 35 108 49 212 75 60 150% <±1 2
25 0001-1352 G2130 224 106 47 52 163 70 277 75 86 150% <±1 5
55 0001-1353 GN H9 324 148 66 70 249 100 362 110 114 150% <±1 10
85 0001-1354 GN H10 340 165 75 83 311 120 409 110 130 150% <±1 10
120 0001-1355 GN H10 416 200 89 80 358 150 460 110 150 150% <±1 50
200 0001-1356 GN H10 530 260 120 90 448 180 562 110 235 150% <±1 100
300 0001-1357 GN H10 565 305 130 120 541 205 612 110 287 150% <±1 100
400 0001-1358 GN H10 655 350 165 120 603 230 707 110 345 150% <±1 100
500 0001-1359 GN H10 710 370 180 160 623 255 740 110 375 150% <±1 100

Product specification

Pin Material: 17-4PH H1150+1150 Stainless Steel
Bridge Resistance 1000Ω
Operating Temperature: -20°C to +60°C
Display: TW3.0-T Telemetry Handheld Display
Transmission Frequency: 2.4GHz
Range: 800m range (line of sight)
Battery Type: Internal 3.7V Rechargeable Li-Po Battery
Battery Life: 350 Hours (2 years non-operational)
Battery Charger: Supplied with USB Charger
Protection: IP67
Calibration: Supplied with calibration, proof load and test certificates to traceable to UKCA BS EN ISO 7500-1 2018
Packaging: Wooden Storage Case
Approvals: UKCA, CE, FCC and IC tested and compliant
