Spearpoint Grapnel

Description

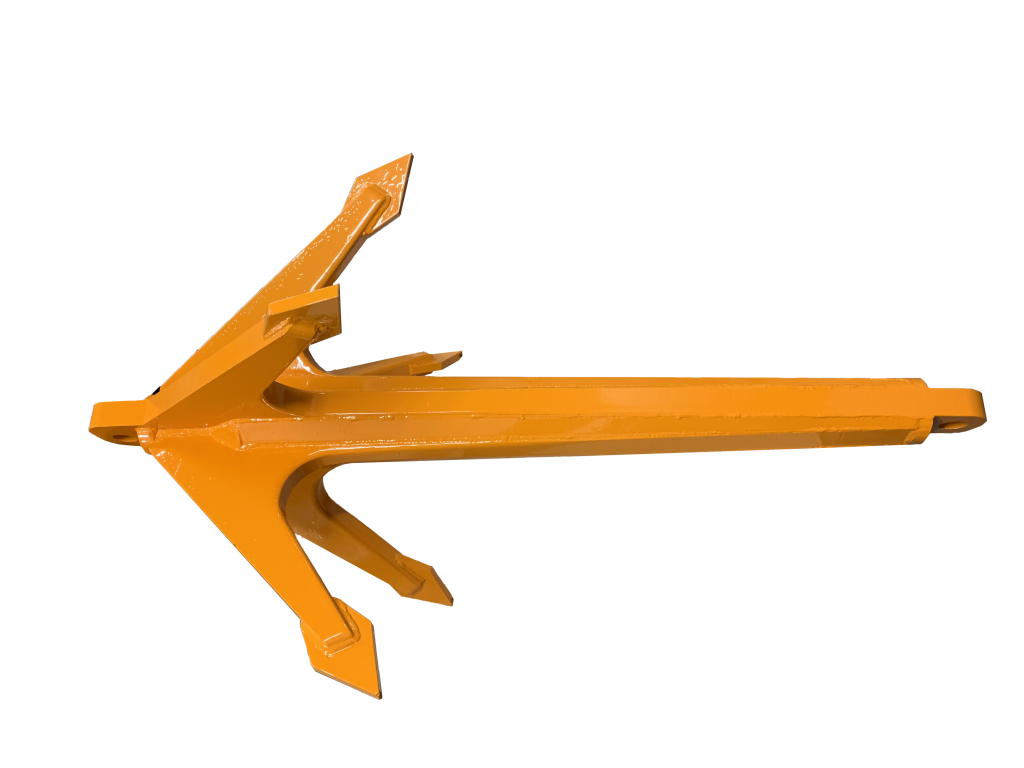

The Spearpoint grapnel consists of a shank with five prongs with reinforced tips.

Spearpoints vary in size and hence seabed penetration. The three sizes normally used are the 115kgs, 180kgs and 250kgs depending on the penetrable seabeds where some resistance maybe experienced.

Spearpoints are often used at the end of a Rennie and Gifford rig or have a Rennie and Gifford reversed rigged.

Key features

  • Manufactured from high strength structured steel
  • Integrated single piece prongs for increased strength
  • Flux core welded for increased strength
  • Integrated tow points
  • Painted in marine friendly RAL2000 paint
  • Hardox Spearpoint tips

Applications

  • PLGR (Pre Lay Grapnel Run)
  • Designed for sandy seabed environments where some resistance can be experienced
  • Recovering or clearing self-buried cable
  • Maintenance of cable systems
  • Used in conjunction with Rennie and Gifford

Dimensional data

Part Number Description A B C WLL Proof Load
0001-1181 115kg 900mm 385mm 300mm 7.5t 15t
0001-1182 180kg 1220mm 410mm 320mm 7.5t 15t
0001-1165 250kg 1550mm 450mm 375mm 7.5t 15t

Spares and Accessories

Part Number Description
0050-0695 12t Shackle
